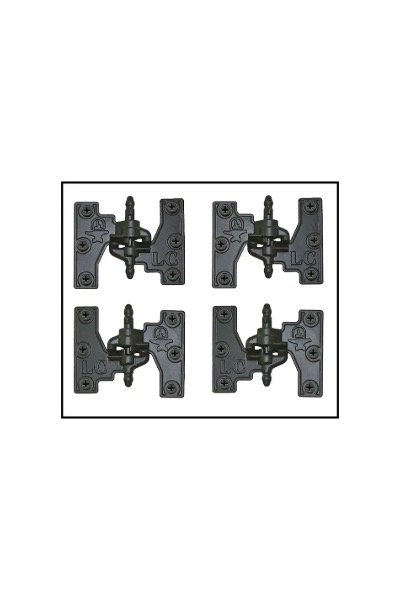

Louisiana Style Hinge Set - Galvanized Steel (4 Hinge Set)
Description

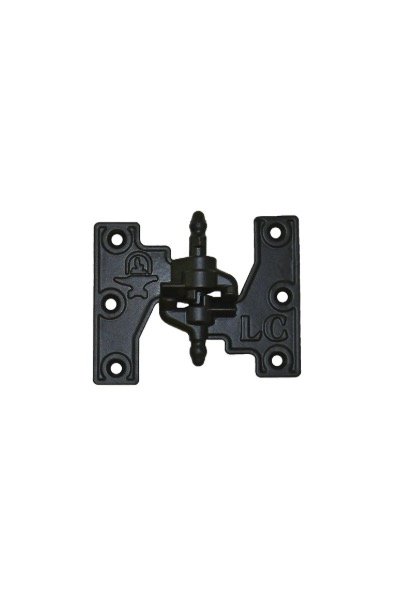

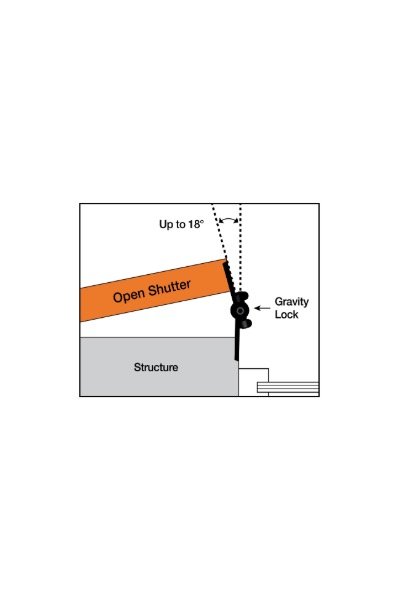

The Louisiana Style gravity locking shutter hinge is made of cast steel for strength, durability and corrosion resistance. This type of hinge holds shutters in the open position, tilted slightly back towards the house. It is popular in the southern US, particularly throughout Louisiana. This set is made of galvanized cast steel.
Both the hinge and pintle have a 1-1/4″ offset, giving the set a total throw of 2-1/2″. The pintle is mounted to the inner jamb of the window cavity and the hinge mounts to the narrow side of the shutter. The pintle is double locking, meaning that it locks the shutter in the open position until the shutter is manually lifted and turned, and also prevents the shutter from being lifted off the house unless it is in the precisely correct, closed position.
To learn more about the benefits of cast steel vs cast iron, please check out our post on The Material Difference: Cast Steel Over Cast Iron
If you would like to learn more about the history of gravity shutter hinges in the United States, including the ACME Lull & Porter patented blind hinge, please check out our post on Evolution of Gravity Hinges: From Shepherd’s Gates to Modern Shutters
Description
The Louisiana Style gravity locking shutter hinge is made of cast steel for strength, durability and corrosion resistance. This type of hinge holds shutters in the open position, tilted slightly back towards the house. It is popular in the southern US, particularly throughout Louisiana. This set is made of galvanized cast steel.
Both the hinge and pintle have a 1-1/4″ offset, giving the set a total throw of 2-1/2″. The pintle is mounted to the inner jamb of the window cavity and the hinge mounts to the narrow side of the shutter. The pintle is double locking, meaning that it locks the shutter in the open position until the shutter is manually lifted and turned, and also prevents the shutter from being lifted off the house unless it is in the precisely correct, closed position.
To learn more about the benefits of cast steel vs cast iron, please check out our post on The Material Difference: Cast Steel Over Cast Iron
If you would like to learn more about the history of gravity shutter hinges in the United States, including the ACME Lull & Porter patented blind hinge, please check out our post on Evolution of Gravity Hinges: From Shepherd’s Gates to Modern Shutters
Description
The Louisiana Style gravity locking shutter hinge is made of cast steel for strength, durability and corrosion resistance. This type of hinge holds shutters in the open position, tilted slightly back towards the house. It is popular in the southern US, particularly throughout Louisiana. This set is made of galvanized cast steel.
Both the hinge and pintle have a 1-1/4″ offset, giving the set a total throw of 2-1/2″. The pintle is mounted to the inner jamb of the window cavity and the hinge mounts to the narrow side of the shutter. The pintle is double locking, meaning that it locks the shutter in the open position until the shutter is manually lifted and turned, and also prevents the shutter from being lifted off the house unless it is in the precisely correct, closed position.
To learn more about the benefits of cast steel vs cast iron, please check out our post on The Material Difference: Cast Steel Over Cast Iron
If you would like to learn more about the history of gravity shutter hinges in the United States, including the ACME Lull & Porter patented blind hinge, please check out our post on Evolution of Gravity Hinges: From Shepherd’s Gates to Modern Shutters
SKU: LA1250
Sold as: Set
Spec Sheet: Click to View (opens in new window)
Material: Galvanized Cast Steel
Finish: Black Powder Coat
Screw Spec: 24 each #10 x 1" Flathead Phillips Black Stainless Steel
Width: 4 Pintles: 3 1/2" x 3 1/2"
Height: 1 1/4" Offset
Length: 4 Hinges: 3 1/2" x 3 1/2"
